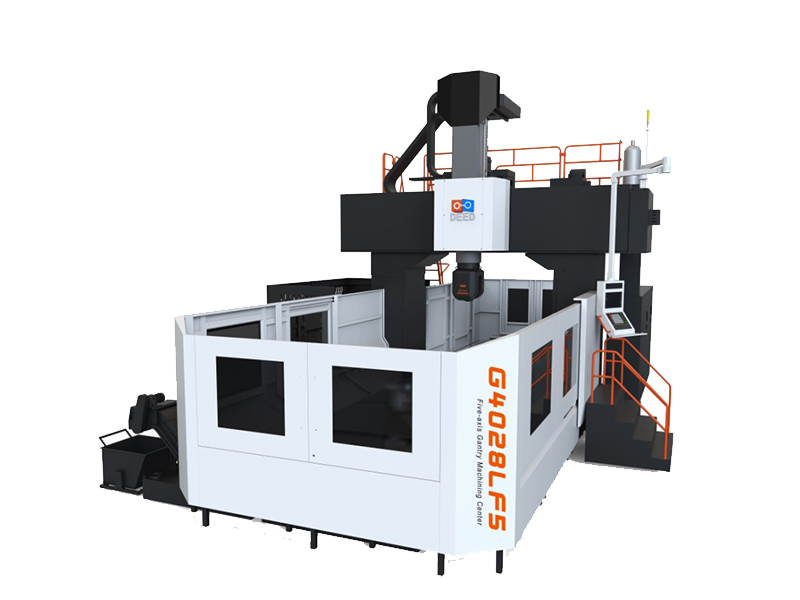

Fixed beam five axis gantry machining center
Product features
This machine tool is a fixed beam five axis gantry machining center, which adopts a gantry frame to fix the moving structure of the workbench. The bed and columns are made of new mineral materials, and the columns are fixed on the left and right sides of the bed. The crossbeam is fixed on the columns, and there are sliders on the crossbeam. It is equipped with a high-speed and high-precision double swing milling head, a symmetrical structure, and ensures the thermal symmetry of the structure. The whole machine has high stiffness, good stability, and high positioning accuracy of the machine tool; The spindle is equipped with a constant temperature function, which improves the stability of spindle accuracy and machining accuracy of the machine tool. The spindle box adopts a dual hydraulic cylinder balance mechanism to ensure the stability of spindle box movement.Configuration
Technical parameters of fixed beam five axis gantry machining center
Parameter | Unit | G3024LF5 | G4028LF5 | G6532LF5 |
Door width | mm | 2400 | 2800 | 3200 |
X/Y/Z stroke | mm | 3000/2600/1050 | 4000/3200/1050 | 6500/3600/1050 |
Workbench size | mm | 3000*1800 | 4000*2200 | 6500*2800 |
Worktable load-bearing capacity | kg | 10000 | 16000 | 20000 |
X/Y/Z fast movement speed | m/min | 12/12/12 | 12/12/12 | 12/12/12 |
spindle taper | HSK-A63 | HSK-A63 | HSK-A100 | |
Maximum spindle speed | r/min | 24000 | 18000 | 12000 |
Power (rated/S6) | kW | 40/48 | 50/67.5 | 63/76 |
Torque (rated/S6) | Nm | 47/57 | 90/120 | 200/241 |
A-axis indexing angle | ° | ±110 | ±110 | ±100 |
C-axis indexing angle | ° | ±360 | ±360 | ±360 |
Maximum speed of A/C axis | rpm | 30 | 30 | 30 |
A/C axis encoder accuracy VDI3441 | Arcsecond | Positioning Repeated positioning 6 | Positioning Repeated positioning 6 | Positioning Repeated positioning 6 |
Video

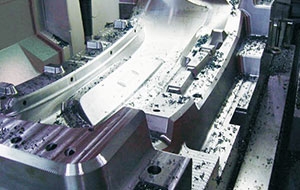

Application

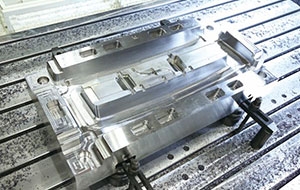

Application

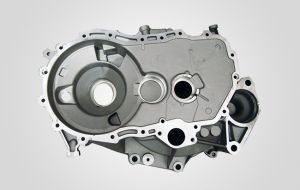

Application

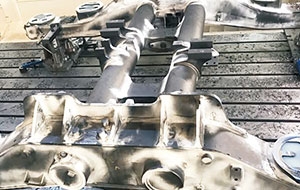

Application
Application
Standard Configuration
CNC system ONE
Spindle constant temperature system
Automatic Lubrication System
Z-axis balance system
Workpiece air cooling system
Workpiece water cooling system
Automatic chip removal device
Internal protection
External protection
Cleaning air gun
Warning lights
Work lights
Electric cabinet air conditioning
Dust prevention of spindle air curtain
Standard accessory
Spindle oil cooling system
Which option is most suitable for you?
Central China System Five Axis Linkage FANUC 0iMF (1) 4+1/3+2 Control
Circular knife magazine 24T/30T
Chain tool magazine 32T/40T/60T
Z-axis travel 1250mm, column raised
Center effluent20/30/50/70bar
Automatic measuring device for workpieces
Automatic tool measuring device
Enclosed protection around the machine tool
Workpiece cleaning water gun
Oil water separation device
Foundation settlement 900mm
Ebeg five axis head
Kessler five axis head
Fully enclosed protection for machine tools
Oil mist collector
Reference ball, inspection rod, square ruler
