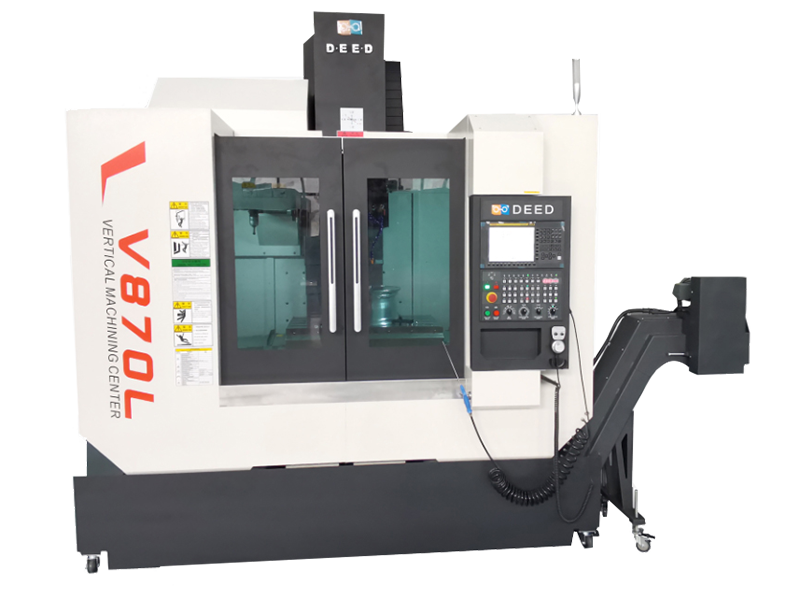

Vertical wheel hub machining and milling machine

Vertical wheel hub machining and milling machine

Product features

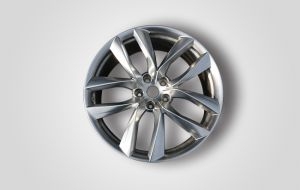

This vertical machining center adopts a cross slide table moving structure, and the guide rail adopts a linear rolling guide rail. It is mainly used for processing various small and medium-sized complex parts. It can complete various processing such as milling, drilling, expanding, boring, tapping, and contour milling in one clamping, suitable for automotive wheel hub processing.

Mod+86 130-4748-2822

Configuration

Vertical wheel hub machining and milling machineTechnical Parameter

Project		Unit	Parameter
Machine range	VF series vertical cradle five axis machining center	mm	800
	Y-axis stroke	mm	710
	Z-axis stroke	mm	500
	Distance from spindle nose to worktable	mm	250～750
	Distance from spindle center to column	mm	710
Staging	Workbench size	mm	1000;600
	Worktable load capacity	kg	600
	T-shaped groove (size; quantity; spacing)	mm	18;4;100
Feed	X/Y/Z-axis fast Feed Speed	m/min	36/36/24
Main shaft	Driving method		Direct connection type
	spindle taper		BT40
	Work speed	r/min	15000
	Power	KW	37/45
	Torque	N·m	55/115
accuracy	X/Y/Z axis Positioning accuracy（semi-closed loop）	mm	0.008（entire length）
accuracy	X/Y/Z axis repeataccuracy（semi-closed loop）	mm	0.005（entire length）
other	Mpa	MPa	0.65
	Battery capacity	KVA	25
	Machine tool dimensions (length; width; height)	mm	2600;2750;3050
	Machine weight	kg	7500
