GL series gantry machining center

Product features

The GL series gantry machining center adopts a movable workbench and a closed gantry frame structure composed of the bed, columns, and crossbeams, which has the characteristics of high rigidity and stability.The machine tool can complete milling, awning, drilling, rigid tapping, and three-axis linked surface machining, and can add right angle milling heads according to customer requirements, achieving five sided machining with one clamping. Especially suitable for rough/semi precision machining of mold parts; Structural components of automation equipment; Processing of large parts in the energy, engineering, and casting industries; Railway turning joints, processing of large structural components, etc.
Mod+86 130-4748-2822

Configuration

Technical parameters of GL series gantry machining center

    GL-18L

    GL-24L

    GL-28L

    GL-32L

    GL-37L

    GL-42L

ModelUnitG1614LG2016LG2018LG2518LG3018LG3518LG4518LG5018LG5518LG6018LG4018L
Door widthmm   18001800     1800
X-axismm160021002100260031003500
 4500
5000550060004000
Y-axismm130016001800180018001800
  1800
1800180018001800
Z-axismm850850850850(1050)850(1050)850850850850850850(1050)
Distance from spindle nose to workbenchmm   200-1050(200-1250)200-1050(200-1250)     200-1050(200-1250)
Workbench widthmm 13001400160016001600160016001600160016001600
T-slotmm   2222     22
Bearingt44.597891112131410
Drive    Belt 1:1.33Belt 1:1.33     Belt 1:1.33
Specification of spindle cone hole    BT50BT50     BT50
Spindle speedrpm  60006000600060006000600060006000600060006000
PowerkW15/18.515/18.515/18.515/18.515/18.5                             15/18.5                                  18.5/3518.5/3518.5/3518.5/3515/18.5
TorqueN.m190/313190/313190/313190/313190/313



 190/313

   156.9/296156.9/296156.9/296156.9/296190/313
Section of spindle boxmm   350×400350×400     350×400
X-axis fast movement speedm/min161616161612108888
Y-axis fast movement speedm/min1616161616161616161616
Z-axis fast movement speedm/min1616161616161616161616
Cutting Speedm/min   1010     8
Positioning accuracy X (semi closed loop)mm   0.0170.017     0.019
Positioning accuracy Y (semi closed loop)mm   0.0150.015     0.015
Positioning accuracy Z (semi closed loop)mm   0.0140.014     0.014
Repetitive positioning accuracy X (semi closed loop)mm   0.0120.012     0.014
Repetitive positioning accuracy Y (semi closed loop)mm   0.010.01     0.01
Repetitive positioning accuracy Z (semi closed loop)mm   0.0080.008     0.008
Battery capacityKva   3030     30
MpaMpa   0.650.65     0.65
Machine tool heightmm   48004800     4800
Land areamm×mm   8900X510010230X5100     12830X5100
Net weightT   20.522.5     26.5
ModelUnitG3024LG3524LG4024LG4524LG5024LG5524LG6024L
Door widthmm2400 2400 2400 2400
X-axismm3000350040004500500055006000
Y-axismm2400240024002400240024002400
Z-axismm850(1050)850850(1050)850850(1050)850850(1050)
Distance from spindle nose to workbenchmm200-1050(200-1250) 200-1050(200-1250) 200-1050(200-1250) 200-1050(200-1250)
Workbench widthmm1800180018001800180018001800
T-slotmm22 22 22 22
Bearingt891011121314
Drive Belt 1:1.33 Belt 1:1.33 Belt 1:1.33 Belt 1:1.33
Specification of spindle cone hole BT50 BT50 BT50 BT50
Spindle speedrpm6000600060006000600060006000
PowerkW15/18.515/18.515/18.518.5/3518.5/3518.5/3518.5/35
TorqueN.m190/313190/313190/313156.9/296156.9/296156.9/296156.9/296
Section of spindle boxmm350×400 350×400 350×400 350×400
X-axis fast movement speedm/min12121210888
Y-axis fast movement speedm/min12121212121212
Z-axis fast movement speedm/min12121212121212
Cutting Speedm/min8 8 8 8
Positioning accuracy X (semi closed loop)mm0.018 0.02 0.023 0.027
Positioning accuracy Y (semi closed loop)mm0.018 0.018 0.018 0.018
Positioning accuracy Z (semi closed loop)mm0.014 0.014 0.014 0.014
Repetitive positioning accuracy X (semi closed loop)mm0.013 0.014 0.017 0.019
Repetitive positioning accuracy Y (semi closed loop)mm0.012 0.012 0.012 0.012
Repetitive positioning accuracy Z (semi closed loop)mm0.008 0.008 0.008 0.008
Battery capacityKva30 30 45 45
MpaMpa0.65 0.65 0.65 0.65
Machine tool heightmm4800 4800 4800 4800
Land areamm×mm8600X6300 10880X6300 13160X6300 15440X6300
Net weightT27 33.5 40.5 47.5
ModelUnitG3028LG3528LG4028LG4528LG5528LG6528L
Door widthmm280028002800280028002800
X-axismm300035004000450055006500
Y-axismm340034003400340034003400
Z-axismm1250(1450)1250(1450)1250(1450)1250(1450)1250(1450)1250(1450)
Distance from spindle nose to workbenchmm200-1450(200-1650)200-1450(200-1650)200-1450(200-1650)200-1450(200-1650)200-1450(200-1650)200-1450(200-1650)
Workbench widthmm220022002200220022002200
T-slotmm222222222222
Bearingt161820222324
Drive Direct connection+gearboxDirect connection+gearboxDirect connection+gearboxDirect connection+gearboxDirect connection+gearboxDirect connection+gearbox
Specification of spindle cone hole BT50BT50BT50BT50BT50BT50
Spindle speedrpm600060006000600060006000
PowerkW22/2622/2622/2622/2622/2622/26
TorqueN.m770/910770/910770/910770/910770/910770/910
Section of spindle boxmm450×450450×450450×500450×500450×500450×500
X-axis fast movement speedm/min121212121212
Y-axis fast movement speedm/min121212121212
Z-axis fast movement speedm/min121212121212
Cutting Speedm/min888888
Positioning accuracy X (semi closed loop)mm0.020.0210.020.0220.0240.028
Positioning accuracy Y (semi closed loop)mm0.0220.0220.0180.0180.0180.018
Positioning accuracy Z (semi closed loop)mm0.0180.0180.0150.0150.0150.015
Repetitive positioning accuracy X (semi closed loop)mm0.0150.0160.0150.0160.0180.02
Repetitive positioning accuracy Y (semi closed loop)mm0.0170.0170.0150.0150.0150.015
Repetitive positioning accuracy Z (semi closed loop)mm0.0080.0080.0080.0080.0080.008
Battery capacityKva505050505050
MpaMpa0.650.650.650.650.650.65
Machine tool heightmm640064006400640064006400
Land areamm×mm9800X660010800X660011400X660012400X660014400X660016400X6600
Net weightT40.54345.547.55052.5
ModelUnitG4532LG5532LG6532LG8532LG10532L
Door widthmm32003200320032003200
X-axismm450055006500850010500
Y-axismm38003800380038003800
Z-axismm1250(1450)1250(1450)1250(1450)1250(1450)1250(1450)
Distance from spindle nose to workbenchmm200-1450(200-1650)200-1450(200-1650)200-1450(200-1650)200-1450(200-1650)200-1450(200-1650)
Workbench widthmm28002800280028002800
T-slotmm2222222222
Bearingt2428303232
Drive Direct connection+gearboxDirect connection+gearboxDirect connection+gearboxDirect connection+gearboxDirect connection+gearbox
Specification of spindle cone hole BT50BT50BT50BT50BT50
Spindle speedrpm60006000600060006000
PowerkW22/2622/2622/2622/2622/26
TorqueN.m770/910770/910770/910770/910770/910
Section of spindle boxmm450×500450×500450×500450×500450×500
X-axis fast movement speedm/min1212121210
Y-axis fast movement speedm/min1212121212
Z-axis fast movement speedm/min1212121212
Cutting Speedm/min88888
Positioning accuracy X (semi closed loop)mm0.0220.0240.0280.0320.038
Positioning accuracy Y (semi closed loop)mm0.0230.0230.0230.0230.023
Positioning accuracy Z (semi closed loop)mm0.0150.0150.0150.0150.015
Repetitive positioning accuracy X (semi closed loop)mm0.0160.0180.020.0220.029
Repetitive positioning accuracy Y (semi closed loop)mm0.0180.0180.0180.0180.018
Repetitive positioning accuracy Z (semi closed loop)mm0.0080.0080.0080.0080.008
Battery capacityKva5050505050
MpaMpa0.650.650.650.650.65
Machine tool heightmm64006400640064006400
Land areamm×mm12400X700014400X700016400X700022800X700026800X7000
Net weightT60.564.568.576.587
ModelUnit                    G6537LG8537LG10537LG12537L
Door widthmm3700370037003700
X-axismm650085001050012500
Y-axismm4300430043004300
Z-axismm1250(1500)1250(1500)1250(1500)1250(1500)
Distance from spindle nose to workbenchmm200-1450(200-1700)200-1450(200-1700)200-1450(200-1700)200-1450(200-1700)
Workbench widthmm3200(3500)3200(3500)3200(3500)3200(3500)
T-slotmm28282828
Bearingt30323636
Drive Direct connection+gearboxDirect connection+gearboxDirect connection+gearboxDirect connection+gearbox
Specification of spindle cone hole BT50BT50BT50BT50
Spindle speedrpm6000600060006000
PowerkW22/2622/2622/2622/26
TorqueN.m770/910770/910770/910770/910
Section of spindle boxmm450×500450×500450×500450×500
X-axis fast movement speedm/min1210108
Y-axis fast movement speedm/min12121210
Z-axis fast movement speedm/min12121210
Cutting Speedm/min6666
Positioning accuracy X (semi closed loop)mm0.0280.0320.0380.042
Positioning accuracy Y (semi closed loop)mm0.0280.0280.0280.028
Positioning accuracy Z (semi closed loop)mm0.0150.0150.0150.015
Repetitive positioning accuracy X (semi closed loop)mm0.020.0220.0290.034
Repetitive positioning accuracy Y (semi closed loop)mm0.0190.0190.0190.019
Repetitive positioning accuracy Z (semi closed loop)mm0.0080.0080.0080.008
Battery capacityKva50508080
MpaMpa0.650.650.650.65
Machine tool heightmm6400640064006400
Land areamm×mm16800X750022800X750026800X750031300X7500
Net weightT89.5105.5121135.5
ModelUnitG10542LG12542LG14542L
Door widthmm420042004200
X-axismm105001250014500
Y-axismm4300(4800)4300(4800)4300(4800)
Z-axismm1250(1500)1250(1500)1250(1500)
Distance from spindle nose to workbenchmm200-1450(200-1700)200-1450(200-1700)200-1450(200-1700)
Workbench widthmm350035003500
T-slotmm282828
Bearingt363636
Drive Direct connection+gearboxDirect connection+gearboxDirect connection+gearbox
Specification of spindle cone hole BT50BT50BT50
Spindle speedrpm450045004500
PowerkW30/3730/3730/37
TorqueN.m1365/16881365/16881365/1688
Section of spindle boxmm450×500450×500450×500
X-axis fast movement speedm/min888
Y-axis fast movement speedm/min101010
Z-axis fast movement speedm/min101010
Cutting Speedm/min666
Positioning accuracy X (semi closed loop)mm0.0380.0420.047
Positioning accuracy Y (semi closed loop)mm0.0280.0280.028
Positioning accuracy Z (semi closed loop)mm0.0150.0150.015
Repetitive positioning accuracy X (semi closed loop)mm0.0290.0340.04
Repetitive positioning accuracy Y (semi closed loop)mm0.0190.0190.019
Repetitive positioning accuracy Z (semi closed loop)mm0.0080.0080.008
Battery capacityKva808080
MpaMpa0.650.650.65
Machine tool heightmm690069006900
Land areamm×mm27800X800031300X800035300X8000
Net weightT122137152

Video

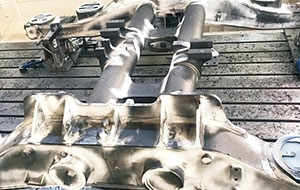

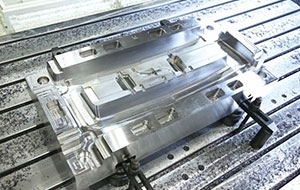

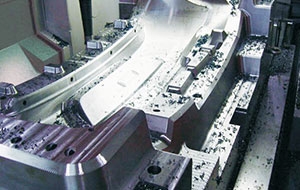

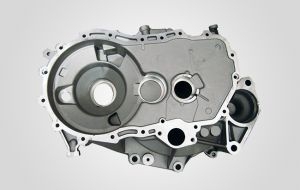

Application

16037603275600218

Application

17048797149250288

Application

17048797243008954

Application

17048797359893126

Application


Standard Configuration

CNC system FANUC 0I MF plus(5)

Spindle oil cooling system

Automatic Lubrication System

Z-axis balance system

Workpiece air cooling system

Workpiece water cooling system

Automatic chip removal device

Internal protection

External protection

Warning lights

Work lights

Electric cabinet heat exchanger

Dust prevention of spindle air curtain

Standard accessory

Which option is most suitable for you?

CNC system FANUC 0I MF plus(5)

SIEMENS 828D

Spindle oil cooling system

Z-axis travel extended by 200mm

Increase the overall height of the column by 200mm

Center effluent

Fully enclosed protection for machine tools

Spindle ring spray

Oil water separation device

hydraulic balance

FANUC OI MF（5）15/18.5KW

Belt（1:1.77），4500rpm ，253.3/417.3Nm

Manual attachment milling head/head stock

Semi automatic milling head/head stock

Automatic measuring device for workpieces

FANUC OI MF（1）18/35KW

Belt drive1:1.33，6000rpm，156.9/296Nm

FANUC OI MF（1）18/35KW

Belt drive1:1.77，4500rpm，208.86/394Nm

FANUC OI MF（1）18/30KW

Understanding the product

Shandong Deed Precision Machine Tool., Ltd.
+86 130-4748-2822

+86 130-4748-2822
